SDR -35.5

Wiper seal SDR -35.5

Mã sản phẩm: SDR -35.5

Sản phẩm đã bán:

Phí vận chuyển: Tính phí khi thanh toán

Mô tả ngắn

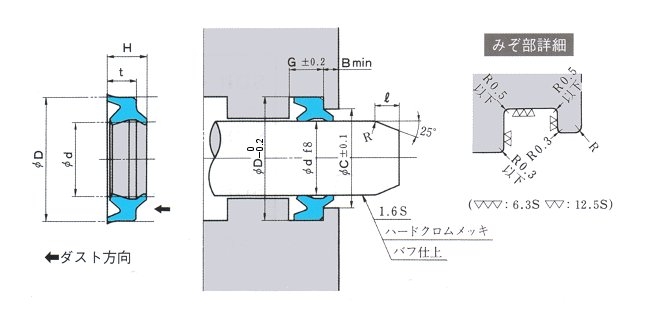

● Wipers should be installed in the direction specified in the above schematic.
● Consider adopting divided grooves if one-piece groove is technically adverse.
● Refer to the dimension as it

Hỗ trợ trực tuyến

Hotline/Zalo/Viber: 0946 265 720

Scraper / Groove Dimensions　(Unit：mm)							Instruction code
Scraper / Groove Dimensions　(Unit：mm)							SDR Scraper
d	D	H	t	G	C	B	Standard(RN 906)	For heat resistance(RF 905)	For cold resistance(RN 903)
12	20	6	4.5	5	16.3	2	SDR -0012001N906
12.5	20.5	6	4.5	5	16.8	2	SDR -12.5
14	22	6	4.5	5	18.3	2	SDR-14
16	24	6	4.5	5	20.3	2	SDR-16	SDR-16F
18	26	6	4.5	5	22.3	2	SDR-18	SDR-18F
19	27	6	4.5	5	23.3	2	SDR -0019001N906
20	28	6	4.5	5	24.3	2	SDR-20	SDR-20F
22	30	6	4.5	5	26.3	2	SDR-22	SDR-22F
22.4	30.4	6	4.5	5	26.7	2	SDR-22.4	SDR-22.4F	SDR-22.4N
25	33	6	4.5	5	29.3	2	SDR-25	SDR-25F	SDR-25N
25.4	33.4	6	4.5	5	29.7	2	SDR -0025404N906		SDR-0025402N903
26	34	6	4.5	5	30.3	2	SDR -0026001N906
28	36	6	4.5	5	32.3	2	SDR-28	SDR-28F
30	38	6.5	5	6	34	2	SDR-30	SDR-30F
31.5	39.5	6.5	5	6	35.5	2	SDR-31.5	SDR-31.5F
32	40	6.5	5	6	36	2	SDR-32
35	43	6.5	5	6	39	2	SDR-35	SDR-35F
35.5	43.5	6.5	5	6	39.5	2	SDR-35.5	SDR-35.5F	SDR-35.5N
36	44	6.5	5	6	40	2	SDR-36	SDR-36F
38	46	6.5	5	6	42	2	SDR -0038001N906
40	48	6.5	5	6	44	2	SDR-40	SDR-40F	SDR-40N
45	53	6.5	5	6	49	2	SDR-45	SDR-45F
50	58	6.5	5	6	54	2	SDR-50	SDR-50F	SDR-50N
53	61	6.5	5	6	57	2	SDR-53	SDR-53F
55	63	6.5	5	6	59	2	SDR-55	SDR-55F
56	64	6.5	5	6	60	2	SDR-56	SDR-56F
60	68	6.5	5	6	64	2	SDR-60	SDR-60F
63	71	6.5	5	6	67	2	SDR-63	SDR-63F	SDR-63N
65	73	6.5	5	6	69	2	SDR-65	SDR-65F
67	75	6.5	5	6	71	2	SDR-67	SDR-67F	SDR-67N
70	80	8	6	7	75	3	SDR-70	SDR-70F
71	81	8	6	7	76	3	SDR-71	SDR-71F	SDR-71N
75	85	8	6	7	80	3	SDR-75	SDR-75F	SDR-75N
80	90	8	6	7	85	3	SDR-80	SDR-80F
85	95	8	6	7	90	3	SDR-85	SDR-85F	SDR-85N
90	100	8	6	7	95	3	SDR-90	SDR-90F
95	105	8	6	7	100	3	SDR-95	SDR-95F	SDR-95N
100	110	8	6	7	105	3	SDR-100	SDR-100F	SDR-100N
105	115	8	6	7	110	3	SDR -0105002N906
106	116	8	6	7	111	3	SDR-106	SDR-106F
110	120	8	6	7	115	3	SDR -0110002N906
112	122	8	6	7	117	3	SDR-112	SDR-112F
115	125	8	6	7	120	3	SDR -0115002N906
118	128	8	6	7	123	3	SDR-118	SDR-118F	SDR-118N
120	133	9.5	7	8	127	3	SDR -0120001N906
125	138	9.5	7	8	132	3	SDR-125	SDR-125F
127	140	9.5	7	8	134	3	SDR -0127003N906
132	145	9.5	7	8	139	3	SDR-132	SDR-132F
140	153	9.5	7	8	147	3	SDR-140	SDR-140F
145	158	9.5	7	8	152	3	SDR-145	SDR-145F
150	163	9.5	7	8	157	3	SDR-150	SDR-150F
153	166	9.5	7	8	160	3	SDR -0153001N906
155	168	9.5	7	8	162	3	SDR -0155001N906
160	173	9.5	7	8	167	3	SDR-160	SDR-160F
160	174	9.5	7	8	167	3	SDR -160A	SDR -160AF
165	178	9.5	7	8	172	3	SDR-165	SDR-165F
170	183	9.5	7	8	177	3	SDR -0170001N906
175	188	9.5	7	8	182	3	SDR-175	SDR-175F
180	193	9.5	7	8	187	3	SDR-180	SDR-180F
180	194	9.5	7	8	187	3	SDR -180A	SDR -180AF
190	203	9.5	7	8	197	3	SDR-0190001N906
195	207	9.5	7	8	201.5	3	SDR-0195001N906
200	213	9.5	7	8	207	3	SDR-200	SDR-200F
205	218	9.5	7	8	212	3	SDR -0205002N906	SDR -0205001F905
210	223	9.5	7	8	217	3	SDR -0210002N906		SDR-0210001N903
215	228	9.5	7	8	222	3	SDR -0215001N906
224	237	9.5	7	8	231	3	SDR-224	SDR-224F
225	238	9.5	7	8	232	3	SDR -0225001N906
230	243	9.5	7	8	237	3	SDR -0230001N906
250	266	13	10	11	258	4	SDR-250	SDR-250F
280	296	13	10	11	288	4	SDR -280	SDR -280F
285	301	13	10	11	293	4	SDR -0285001N906
290	306	13	10	11	298	4	SDR -0290001N906
295	311	13	10	11	303	4	SDR -0295001N906
300	316	13	10	11	308	4	SDR -0300002N906
315	331	13	10	11	323	4	SDR -315
320	336	13	10	11	328	4	SDR -0320001N906
335	351	13	10	11	343	4	SDR -0335001N906
355	371	13	10	11	363	4	SDR -355
360	380	13	10	11	368	4	SDR -0360002N906
400	416	13	10	11	408	4	SDR -0400001N906
415	435	13	10	11	423	4	SDR -0415001N906
420	436	13	10	11	428	4	SDR -0420001N906
450	466	13	10	11	458	4	SDR -450
480	496	13	10	11	488	4	SDR -0480001N906
500	520	15.5	11.5	12.5	510	5	SDR -0500001N906
505	521	13	10	11	513	4	SDR -0505001N906
508	528	16	12	13	518	5	SDR -0508001N906
600	616	13	10	11	608	4	SDR -0600001N906
